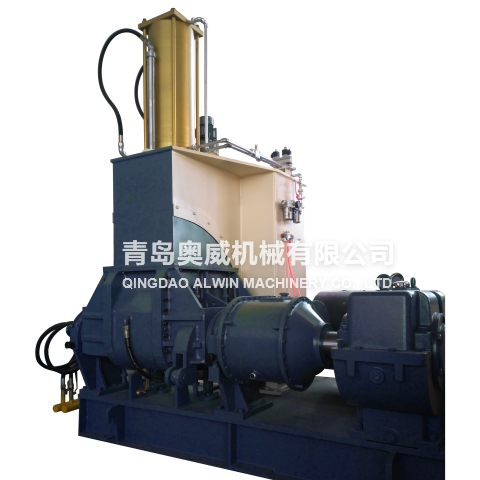

用于橡膠塑料等物料的塑煉混煉及橡塑共混。膠塑物料在密閉加壓的條件下進行塑煉或混煉，生產效率高、勞動強度低、品質穩定。生產過程中能把膠原料充分的撕裂剪切使物料很好地達到分散度和均勻度。
用于橡膠塑料等物料的塑煉混煉及橡塑共混。膠塑物料在密閉加壓的條件下進行塑煉或混煉，生產效率高、勞動強度低、品質穩定。生產過程中能把膠原料充分的撕裂剪切使物料很好地達到分散度和均勻度。
| 型號 Type | X(S)N-35x30 | X(S)N-55X30 | X(S)N-75X30 | X(S)N-110X30 | X(S)N-150×30 | X(S)N-200×30 | |
捏煉總?cè)莘e Total volume of kneading chamber (L) | 75 | 125 | 170 | 250 | 325 | 440 | |
密煉總?cè)莘e Total volume of mixing chamber (L) | 35 | 55 | 75 | 110 | 150 | 200 | |
主驅動電機功率 Driving motor power (kw) | 55 | 75 | 110 | 185 | 220 | 280 | |
翻轉電機功率 Revolving motor power (kw) | 2.2 | 3 | 4 | 5.5 | 11 | 11 | |
翻轉角度 Revolving angle (°) | 140° | 140° | 140° | 140° | 液壓127 | 液壓127 | |
轉子軸轉速（前/后） Revolving speed of rotor (front/back) (r/min) | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | |
壓縮空氣工作壓力 Working pressure of compressed air (Mpa) | 0.5-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
壓縮空氣流量 Flow rate of compressed air (m3/min) | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 | ≥4.0 | |
冷卻水壓力（煉膠） Pressure of cooling water (rubber mixing) (Mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
加熱蒸汽壓力 Pressure of heated steam (plastication) (Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
外形尺寸 Overall dim. (mm) | L | 3200 | 3230 | 3325 | 4075 | 4250 | 4250 |
| W | 1900 | 1927 | 2615 | 2712 | 2750 | 3400 | |
| H | 2950 | 2958 | 3105 | 3580 | 4106 | 4215 | |
| 重量 Weight (t) | ~6.3 | ~7.1 | ~9.5 | ~14.9 | ~19.5 | ~22.5 | |
